TV LIFT SYSTEM

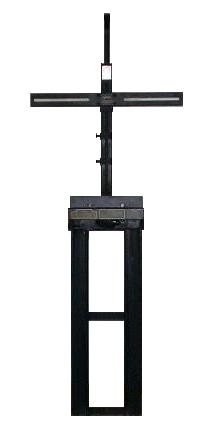

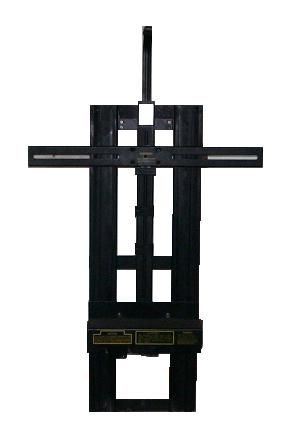

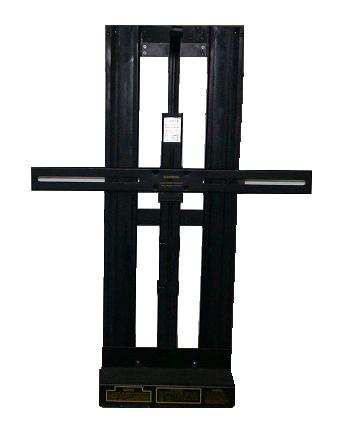

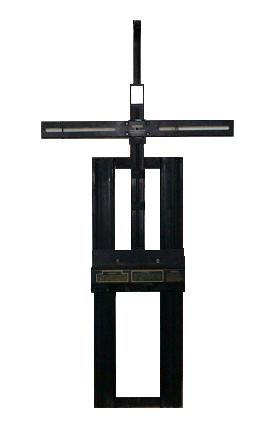

02 Series Sliding TV Lift (CE Approval)

New Product

　

(220V/50Hz or 120V/60Hz are available)

　

　

                                                 Features of 02 series:                          Functions of 02 series:

                                                           1.   Easy operation, plug and play design.          1. Operate with either radio frequency

                                                           2.       Quiet and stable.                                           remote control or manual control.

                                                           3.       Multi-length fitted for LCD TV.                     2. Adjustable TV mount.

                                                           4.       Ultra slim design.                                      3. Current sensor for “lazy control”.  (1)

                                                           5.       Max loading weight: 80 lbs.

                                                           6.   Power output for TV provided.

                                                           7.   Separated manual control box.

                                                           8.   No maintenance parts.

                                                           9.   Fuse protection.



Models of 02 series:

Model:                                      KF2802 HOT

Installation Dimensions (mm):     Min. 710 (L) X 195 (W) X 715 (H)

Fitted TV Size (mm):                  Min. 560 (L) X 115 (W) X Max. 595 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W

　

Model:                                      KF3002 HOT

Installation Dimensions (mm):     Min. 710 (L) X 195 (W) X 765 (H)

Fitted TV Size (mm):                  Min. 560 (L) X 115 (W) X Max. 645 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W

　

Model:                                      KF3302 HOT

Installation Dimensions (mm):     Min. 710 (L) X 195 (W) X 840 (H)

Fitted TV Size (mm):                  Min. 560 (L) X 115 (W) X Max. 720 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W

　

Model:                                      KF3502

Installation Dimensions (mm):     Min. 710 (L) X 195 (W) X 890 (H)

Fitted TV Size (mm):                  Min. 560 (L) X 115 (W) X Max. 770 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W

　

Model:                                      KF3802

Installation Dimensions (mm):     Min. 710 (L) X 195 (W) X 965 (H)

Fitted TV Size (mm):                  Min. 560 (L) X 115 (W) X Max. 850 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W

　

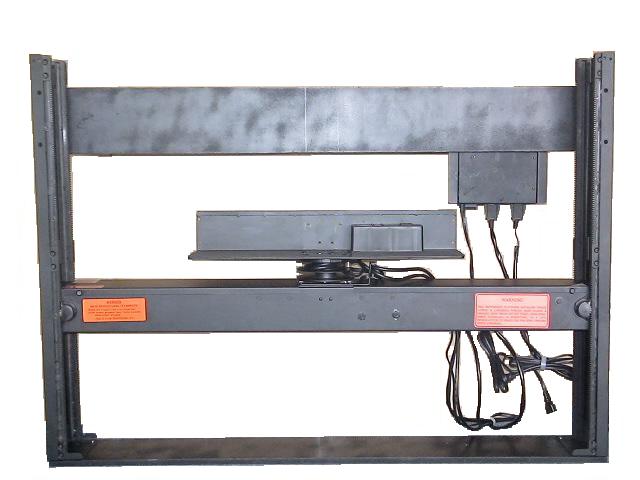

04R Series Rotary TV Lift

New Product

(220V/50Hz or 120V/60Hz are available)

　

                                                 Features of 04R series:                        Functions of 04R series:

                                                           1.       Easy assemble and operation.                    1. Operate with either radio frequency

                                                           2.       Quiet and stable.                                           remote control or manual control.

                                                           3.       Multi-length fitted for 30”-50” TV.                  2. Pressure sensor for “safety device”. (3)

                                                           4.       Long Life up to 10,000 times.                      3. Safety timer device. (5)

                                                           5.       Max loading weight: 130 lbs.                       4. Child safety lock function. (6)

                                                           6.   Rotate angle: 350 degree at top position.      5. Memorize rotate angle - For home

                                                           7.       Power output for TV provided.                          edition ONLY. (7)

                                                           8.       Separated manual control box.

                                                           9.       Fuse protection.

                                                          10.   Cabinet open type: Match box type.

　

Model:                                      KF5004R/34 HOT

Installation Dimensions (mm):     Min. 1355 (L) X 195 (W) X 1035 (H)

Fitted TV Size (mm):                  Max. 1270 (L) X 100 (W) X 860 (H)

Direction Degree (0):                   Left: 900, Right: 2600

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      80W

　

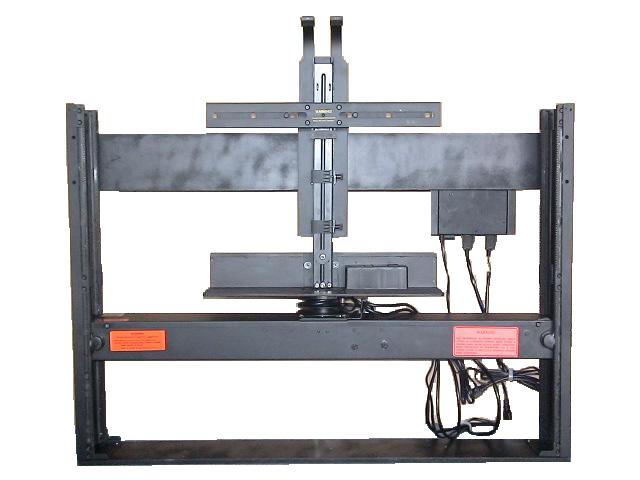

04RC Series Rotary TV Lift

New Product

(220V/50Hz or 120V/60Hz are available)

　

                                                 Features of 04RC series:                       Functions of 04RC series:

                                                           1.       Easy assemble and operation.                    1. Operate with either radio frequency

                                                           2.       Quiet and stable.                                           remote control or manual control.

                                                           3.       Multi-length fitted for 30”-50” TV.                  2. Pressure sensor for “safety device”. (3)

                                                           4.       Long Life up to 10,000 times.                      3. Safety timer device. (5)

                                                           5.       Max loading weight: 130 lbs.                       4. Child safety lock function. (6)

                                                           6.    Rotate angle: 350 degree at top position.   5. Memorize rotate angle - For home

                                                           7.       Power output for TV provided.                          edition ONLY. (7)

                                                           8.       Separated manual control box.

                                                           9.       Fuse protection.

                                                          10.   Cabinet open type: Carry the cabinet lid

                                                                  at the back of the lift.

　

Model:                                      KF5004RC/34 HOT

Installation Dimensions (mm):     Min. 1355 (L) X 195 (W) X 1035 (H)

Fitted TV Size (mm):                  Max. 1270 (L) X 100 (W) X 860 (H)

Direction Degree (0):                   Left: 900, Right: 2600

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W

　

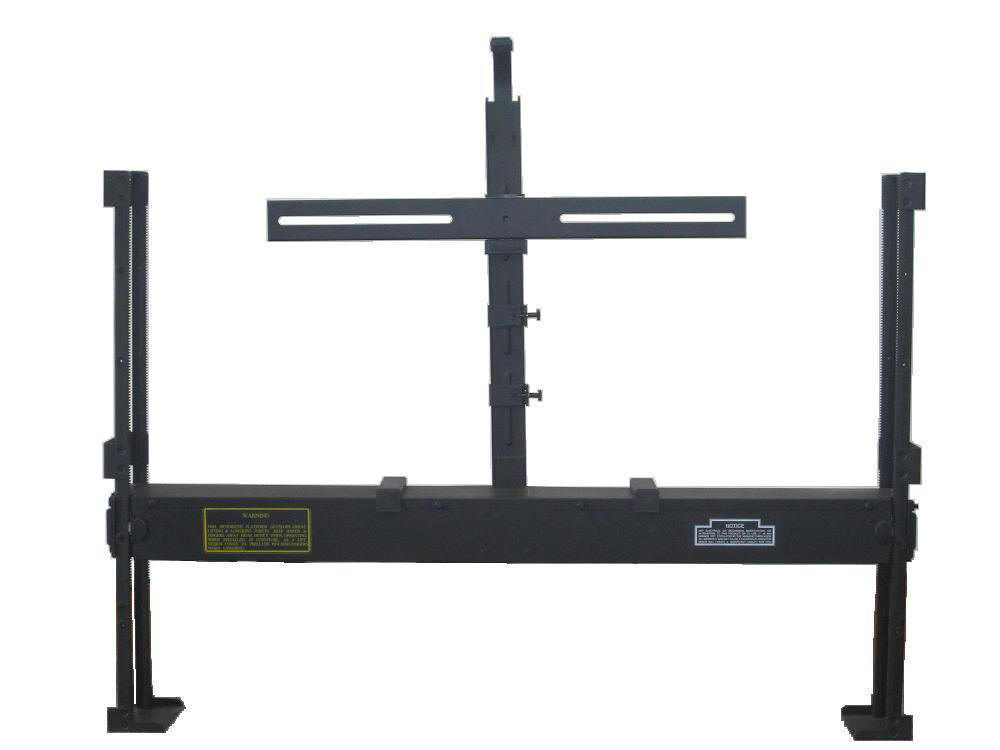

04E Series TV Lift - Economy Class

(220V/50Hz or 120V/60Hz are available)



                                                           Features of 04E series:                        Functions of 04E series:

                                                           1.       Easy assemble and operation.                    1. Operate with either radio frequency

                                                           2.       Quiet and stable.                                             remote control or manual control.

                                                           3.       Multi-length fitted for 30”-50” TV.                  2. Adjustable TV mount.

                                                           4.       Long Life up to 10,000 times.                       3. Current sensor for “lazy control”. (1)

                                                           5.       Max loading weight: 130 lbs.

                                                           6.       Power output for TV provided.

                                                           7.       Separated manual control box.

                                                           8.       Fuse protection.



Models of 04E series:

Model:                                      KF3004E/23MT

Installation Dimensions (mm):     Min. 850 (L) X 200 (W) X 705 (H)

Fitted TV Size (mm):                  Max. 760 (L) X 100 (W) X 585 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W



Model:                                      KF3404E/23MT

Installation Dimensions (mm):     Min. 950 (L) X 200 (W) X 705 (H)

Fitted TV Size (mm):                  Max. 860 (L) X 100 (W) X 585 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W



Model:                                      KF3804E/26MT

Installation Dimensions (mm):     Min. 1050 (L) X 200 (W) X 780 (H)

Fitted TV Size (mm):                  Max. 965 (L) X 100 (W) X 660 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W



Model:                                     KF4204E/26MT HOT

Installation Dimensions (mm):    Min. 1150 (L) X 200 (W) X 780 (H)

Fitted TV Size (mm):                 Max. 1065 (L) X 100 (W) X 660 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W



Model:                                     KF4604E/29MT

Installation Dimensions (mm):    Min. 1255 (L) X 200 (W) X 855 (H)

Fitted TV Size (mm):                 Max. 1165 (L) X 100 (W) X 735 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W



Model:                                      KF5004E/34MT HOT

Installation Dimensions (mm):     Min. 1355 (L) X 200 (W) X 980 (H)

Fitted TV Size (mm):                  Max. 1270 (L) X 100 (W) X 860 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W

　

04DX Series TV Lift – Deluxe Class

(220V/50Hz or 120V/60Hz are available)





                                                           Features of 04DX series:                      Functions of 04DX series:

                                                           1.   Easy assemble and operation.                     1. Operate with either radio frequency

                                                           2.       Quiet and stable.                                            remote control or manual control.

                                                           3.       Multi-length fitted for 30”-50” TV.                  2. Adjustable TV mount.

                                                           4.       Long Life up to 10,000 times.                      3. Current sensor for “lazy control”. (1)

                                                           5.       Max loading weight: 130 lbs.                       4. Auto power cut off function. (2)

                                                           6.       Power output for TV provided.                      5. Pressure sensor for “safety device”. (3)

                                                           7.   Separated manual control box.

                                                           8.    Fuse protection.



Models of 04DX series:

Model:                                      KF3004DX/23MT

Installation Dimensions (mm):     Min. 850 (L) X 200 (W) X 705 (H)

Fitted TV Size (mm):                  Max. 760 (L) X 100 (W) X 585 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W



Model:                                      KF3404DX/23MT

Installation Dimensions (mm):     Min. 950 (L) X 200 (W) X 705 (H)

Fitted TV Size (mm):                  Max. 860 (L) X 100 (W) X 585 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W



Model:                                      KF3804DX/26MT

Installation Dimensions (mm):     Min. 1050 (L) X 200 (W) X 780 (H)

Fitted TV Size (mm):                  Max. 965 (L) X 100 (W) X 660 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W



Model:                                     KF4204DX/26MT HOT

Installation Dimensions (mm):    Min. 1150 (L) X 200 (W) X 780 (H)

Fitted TV Size (mm):                 Max. 1065 (L) X 100 (W) X 660 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W



Model:                                     KF4604DX/29MT HOT

Installation Dimensions (mm):    Min. 1255 (L) X 200 (W) X 855 (H)

Fitted TV Size (mm):                 Max. 1165 (L) X 100 (W) X 735 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W



Model:                                      KF5004DX/34MT HOT

Installation Dimensions (mm):     Min. 1355 (L) X 200 (W) X 980 (H)

Fitted TV Size (mm):                  Max. 1270 (L) X 100 (W) X 860 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W

　

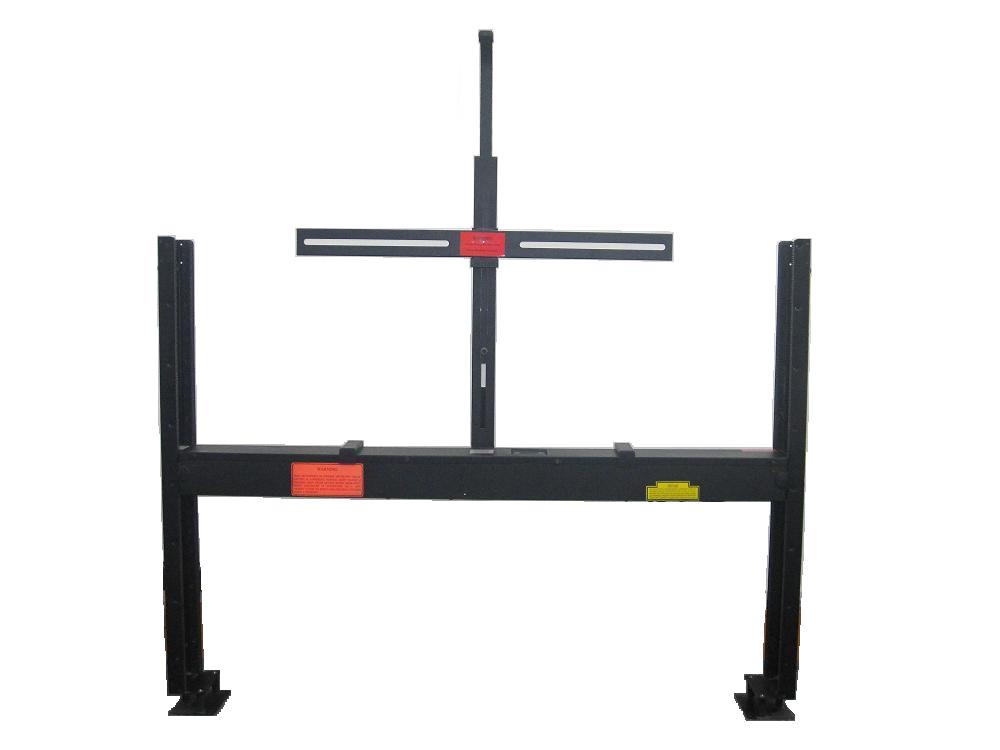

04T Series TV Lift – Touch Sensing Class

(220V/50Hz or 120V/60Hz are available)



                                                           Features of 04T series:                        Functions of 04T series:

                                                           1.       Easy assemble and operation.                    1. Operate with either radio frequency

                                                           2.       Quiet and stable.                                           remote control or manual control.

                                                           3.       Multi-length fitted for 30”-50” TV.                  2. Adjustable TV mount.

                                                           4.       Long Life up to 10,000 times.                      3. Auto power cut off function. (2)

                                                           5.       Max loading weight: 130 lbs.                       4. Touch sensor for “safety device”. (4)

                                                           6.       Power output for TV provided.

                                                           7.       Separated manual control box.

                                                           8.       Fuse protection.



Models of 04T series:

Model:                                      KF3004T/23MT

Installation Dimensions (mm):     Min. 850 (L) X 200 (W) X 755 (H)

Fitted TV Size (mm):                  Max. 760 (L) X 100 (W) X 585 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W



Model:                                      KF3404T/23MT

Installation Dimensions (mm):     Min. 950 (L) X 200 (W) X 755 (H)

Fitted TV Size (mm):                  Max. 860 (L) X 100 (W) X 585 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W



Model:                                      KF3804T/26MT

Installation Dimensions (mm):     Min. 1050 (L) X 200 (W) X 830 (H)

Fitted TV Size (mm):                  Max. 965 (L) X 100 (W) X 660 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W



Model:                                     KF4204T/26MT HOT

Installation Dimensions (mm):    Min. 1150 (L) X 200 (W) X 830 (H)

Fitted TV Size (mm):                 Max. 1065 (L) X 100 (W) X 660 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W



Model:                                     KF4604T/29MT  HOT

Installation Dimensions (mm):    Min. 1255 (L) X 200 (W) X 905 (H)

Fitted TV Size (mm):                 Max. 1165 (L) X 100 (W) X 735 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W



Model:                                      KF5004T/34MT

Installation Dimensions (mm):     Min. 1355 (L) X 200 (W) X 1030 (H)

Fitted TV Size (mm):                  Max. 1270 (L) X 100 (W) X 860 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W

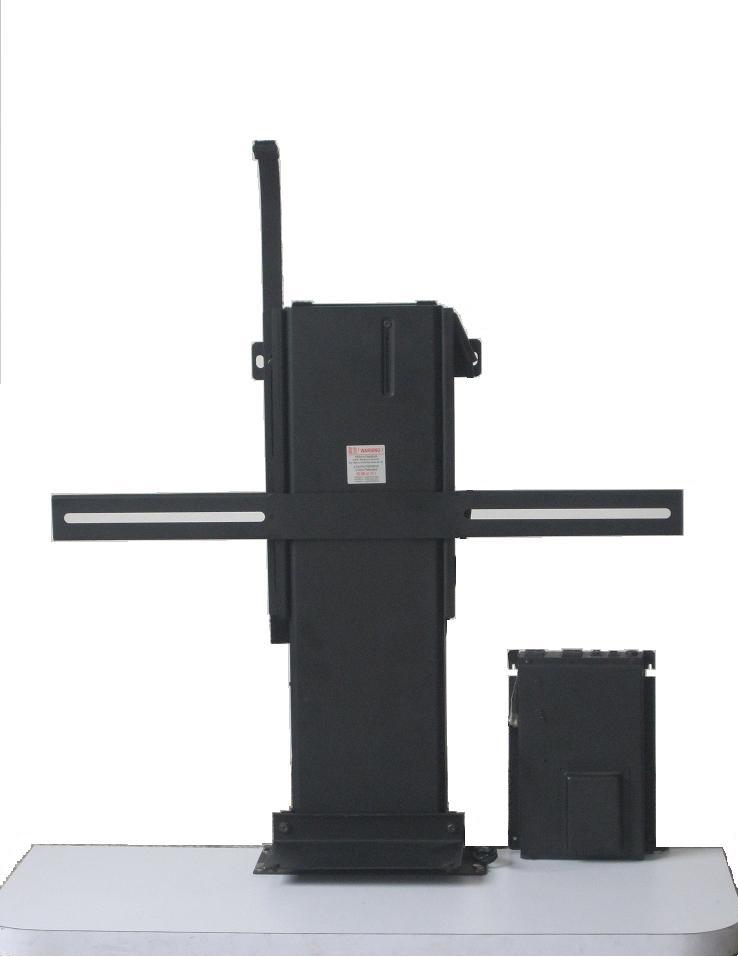

Telescope TV Lift

(220V/50Hz or 120V/60Hz are available)





                                                           Features of telescope lift:                  Functions of telescope lift:

                                                           1.   Easy assemble and operation.                    1. Operate with either radio frequency

                                                           2.       Quiet and stable.                                           remote control or manual control.

                                                           3.       Multi-length fitted for LCD TV.                     2. Adjustable TV mount.

                                                           4.       Ultra slim design.                                       3. Current sensor for “lazy control”.  (1)

                                                           5.       Max loading weight: 130 lbs.                      4. Auto power cut off function. (2)

                                                           6.    Power output for TV provided.

                                                           7.    Separated manual control box.

                                                           8.    Fuse protection.

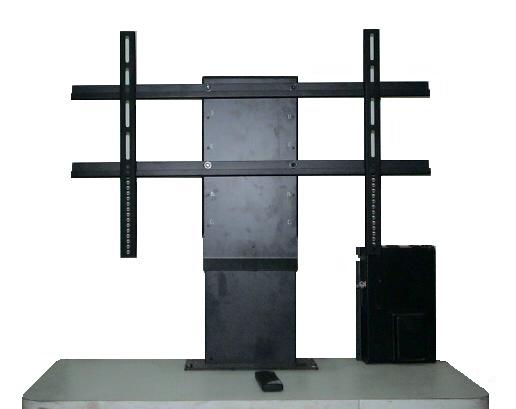

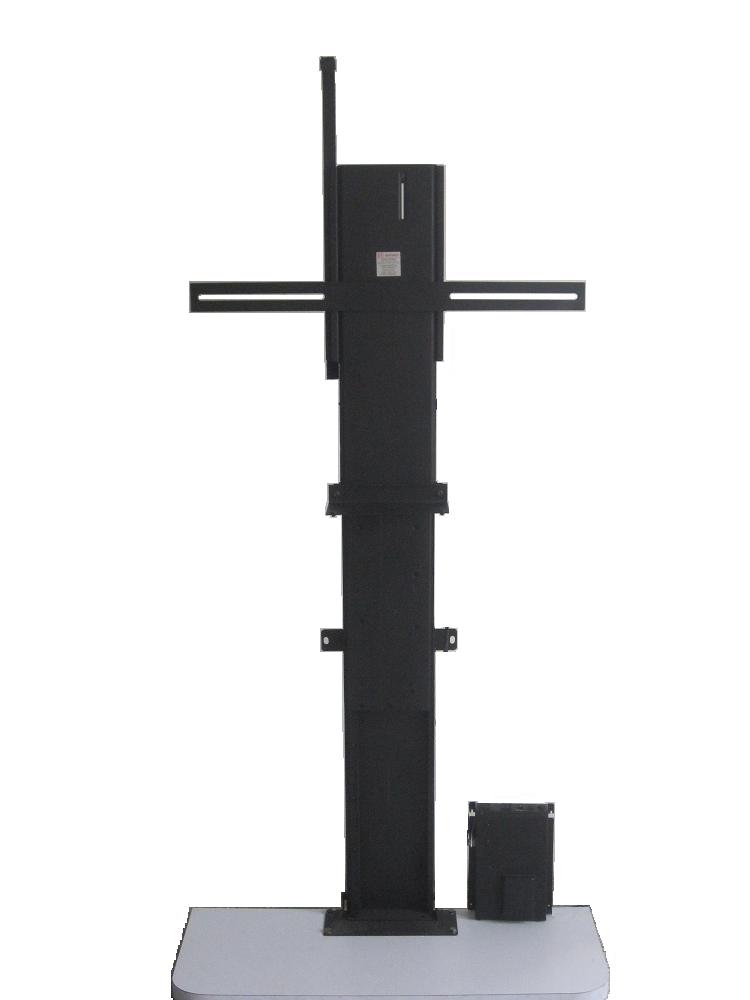

Model:                                      KF0309

Installation Dimensions (mm):     Min. 900 (L) X 195 (W) X 930 (H)

Fitted TV Size (mm):                  Min. 820 (L) X 100 (W) X Max. 900 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W

　

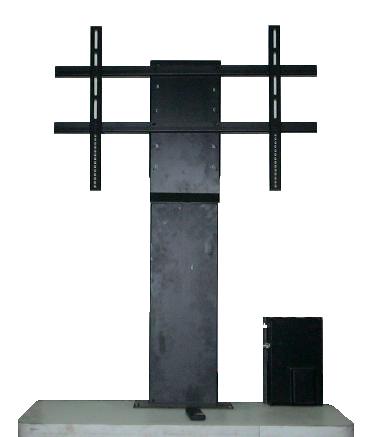

Telescope TV Lift - Plug And Play Design

(220V/50Hz or 120V/60Hz are available)

　

                                                 Features of telescope lift:                    Functions of telescope lift:

                                                           1.   Easy operation, plug and play design.          1. Operate with either radio frequency

                                                           2.       Quiet and stable.                                           remote control or manual control.

                                                           3.       Multi-length fitted for LCD TV.                     2. Adjustable TV mount.

                                                           4.       Ultra slim design.                                        3. Current sensor for “lazy control”.  (1)

                                                           5.       Max loading weight: 130 lbs.                      4. Auto power cut off function. (2)

                                                           6.   Power output for TV provided.

                                                           7.   Separated manual control box.

                                                           8.   Fuse protection.

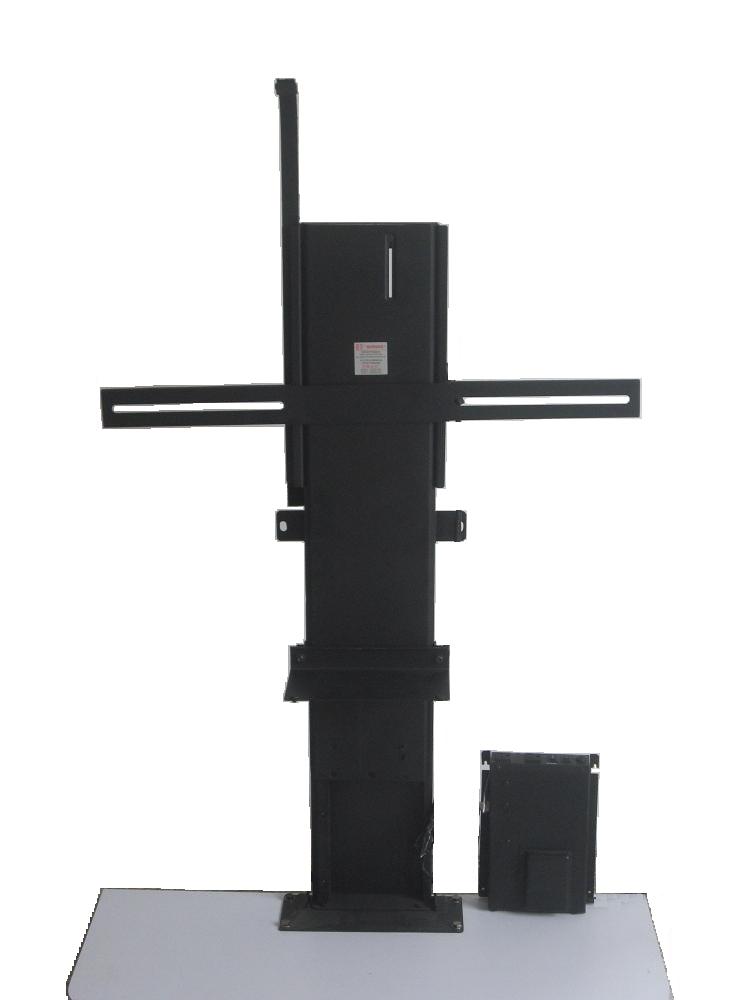

Model:                                      KF0309N

Installation Dimensions (mm):     Min. 900 (L) X 195 (W) X 930 (H)

Fitted TV Size (mm):                  Min. 820 (L) X 100 (W) X Max. 900 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      110W

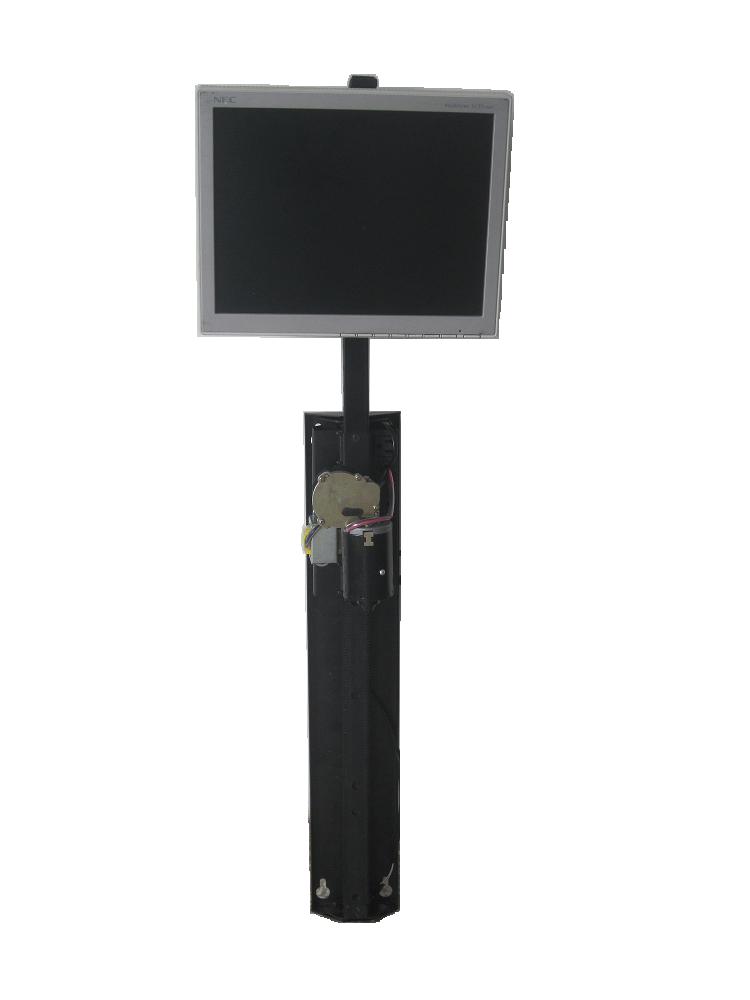

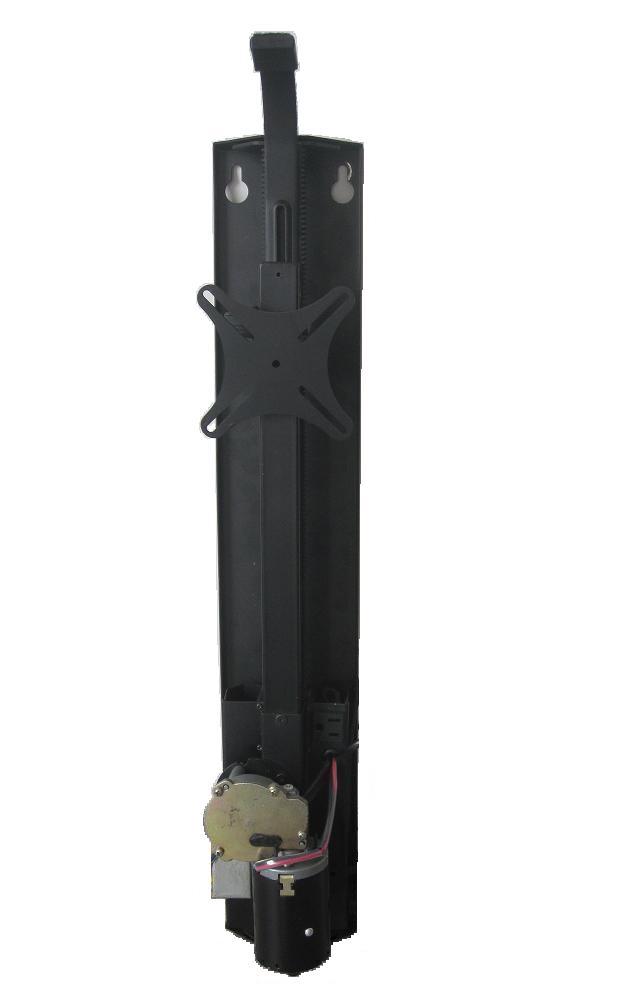

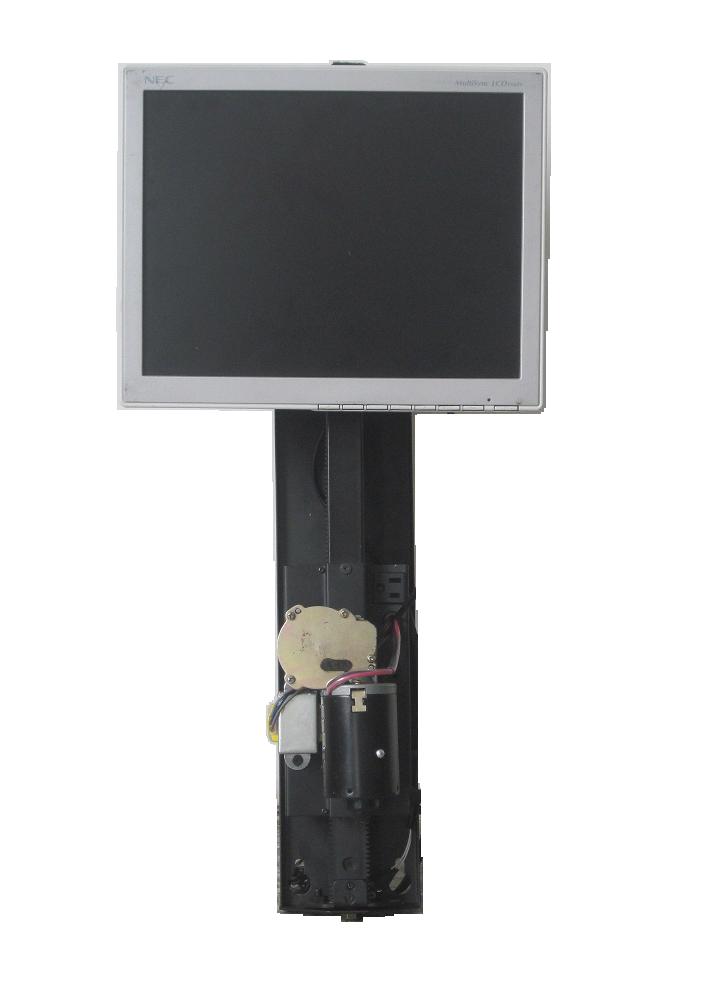

Desk Monitor Lift

(220V/50Hz or 120V/60Hz are available)



                                                           Features of desk lift:                            Functions of desk lift:

                                                           1.   Easy assemble and operation.                     1. Operate with either radio frequency

                                                           2.       Quiet and stable.                                            remote control or manual control.

                                                           3.       Fitted for LCD monitor.                                2. Four points of view adjustable

                                                           4.   Max loading weight: 25 lbs.                              monitor mount.

                                                           5.    Power outputs provided for monitor               3. Current sensor for “lazy control”.  (1)

                                                                 or other equipments.

                                                           6.       Separated manual control box.



Model:                                      KF0702BX

Installation Dimensions (mm):     Min. 400 (L) X 165 (W) X 700 (H)

Fitted Monitor Size (mm):                  Min. 300 (L) X 50 (W) X Max. 450 (H)

Direction Degree (0):                   Left: 1800, Right: 1800, Up: 80, Down: 80

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      50W

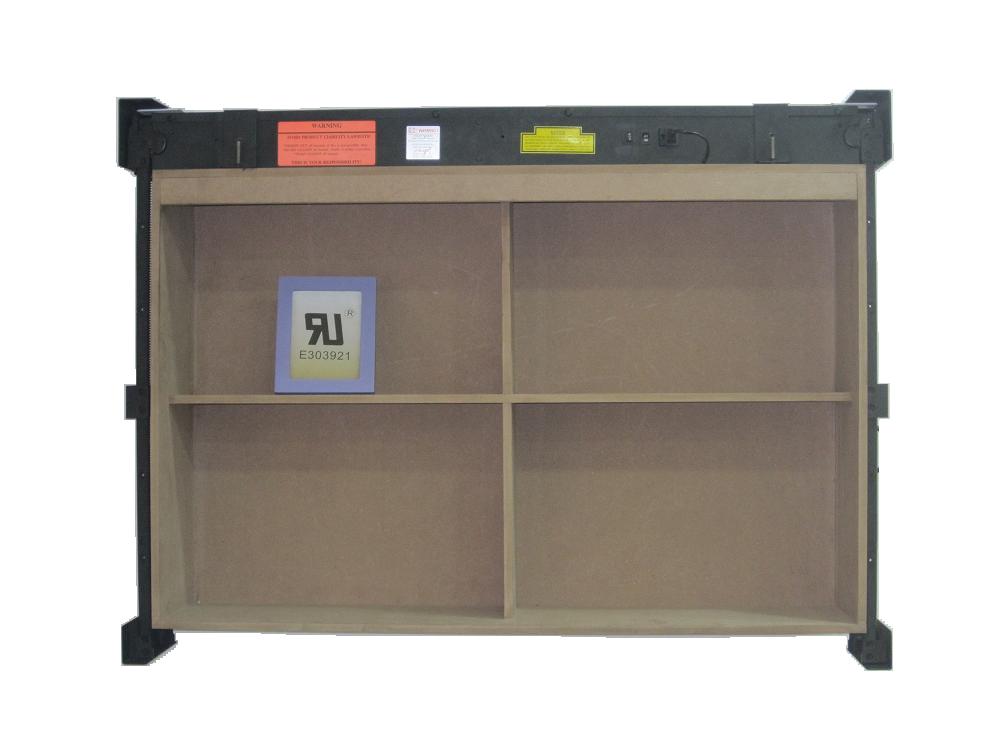

HANGING LIFT SYSTEM

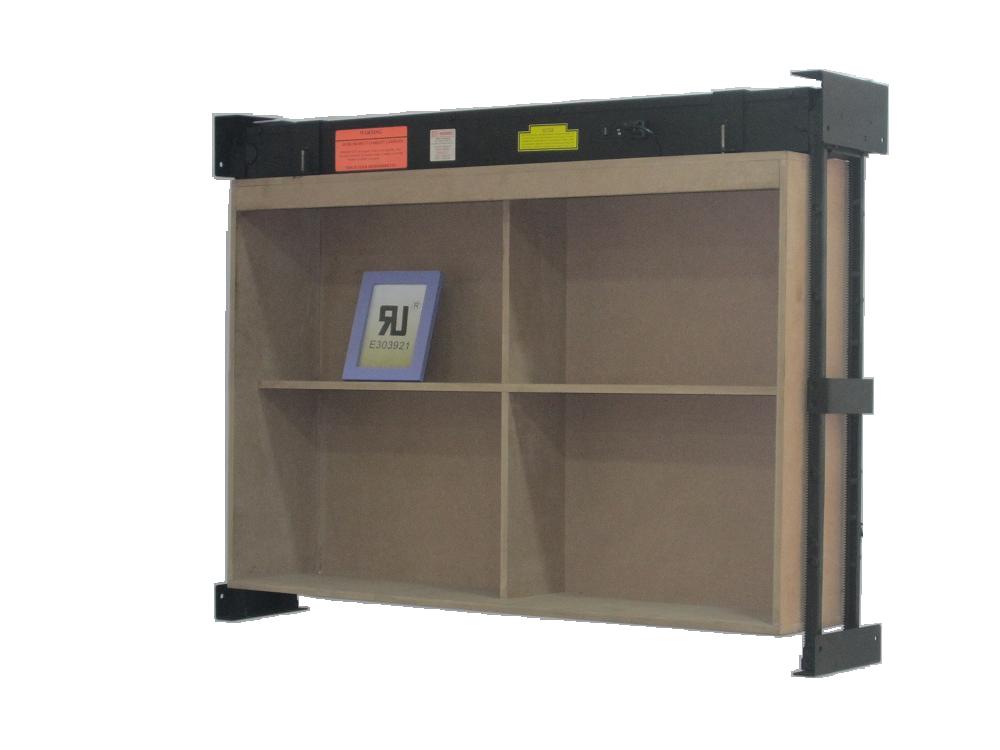

Slim Hanging Lift

(220V/50Hz or 120V/60Hz are available)



                                                         Features of hanging lift:                     Functions of hanging lift:

                                                           1.   Easy assemble and operation.                    1. Operate with either radio frequency

                                                           2.       Quiet and stable.                                           remote control or manual control.

                                                           3.       Fitted for hanging cabinet.                           2. Auto power cut off function. (2)

                                                           4.       Max loading weight: 130 lbs.                       3. Pressure sensor for “safety device”. (3)

                                                           5.    Power output for lighting provided.

                                                           6.    Long Life up to 10,000 times.



Model:                                      KFCL5005D/29

Installation Dimensions (mm):     Min. 1355 (L) X 230 (W) X 870 (H)

Fitted Cabinet Size (mm):                  Max. 1260 (L) X Min. 220 (W) X Max. 700 (H)

Voltage Available:                      220V/50Hz or 120V/60Hz

Power:                                      100W

　

REMOTE CONTROL

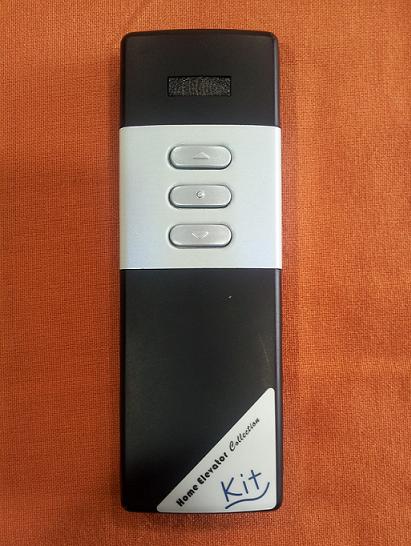

Radio Frequency (RF) Remote Control

Comes With Our Lift Product

　

　



　

　

　



Remarks:

(1)     Current sensor:~

Special feature controlled by TV current. When TV is power on, TV lift will rise automatically. When TV is power off, TV lift will descend automatically. User is un-necessarily to operate the TV lift with its own remote control.

(2)     Auto power cut:~

Special feature controlled by TV lift. When TV lift is at bottommost place, power supply of TV will cut off automatically. When TV lift arise, power supply provide again.

(3)  Pressure sensor:~

Pressure Senor - Machine will first scan the total weight carrying in 0.5s after running, an extra 45Kg (450N) endurance force apply. It will rebound 3 inches for protection. Example : Machine is carrying weight of 55Kg moving downward, a 100Kg endurance force apply underneath the machine, the pressure senor will function.

Timer Protection - If Pressure Senor is not functioning and the machine still presses an object for one minute, the power will be automatically cut off in order to prevent spark of the motor inside the machine.

Thermostatic Protection - If the safety devices above are not working at the same time, there is a Motor Lock Rotor system. Machine will

stop working if the motor is running over heat. This will happen if the machine is running up and down unceasingly 10 - 20 times.

Afterward it will resume normal if the motor is cooled down after 30 minutes.

Thermostatic Fuse Protection - In case three of the safety devices above are not working, the protection starting take action after 10

minutes. The whole machine will be permanently broken down and cannot be restart again.

(4)     Touch sensor:~

Special feature controlled by human contact. When the main body of the TV lift detect human beings, it will stop moving.

(5)     Safety timer device:~

When the lift is loaded and continuously travels up and down for approx. 6 minutes, the lift will suspend normal operation automatically. During the suspension of normal operation, the lift ONLY can be operated by manual UP/DOWN switch and it ONLY can be operate upward by remote control. The lift may need to take approx. 10 minutes to revert to the normal operation.

(6)     Child safety lock function:~

Adult can lock the lift by holding any button on the remote control for 10 seconds to avoid the child to operate the lift without adult attended. When the lift is locked, it will stop working and the remote control cannot be operate also. To unlock the lift, press any button on the remote control for 10 seconds or turn off the power for 5 minutes.

(7)    Memorize rotate angle:~

When the lift is not in use, it will memorize the latest rotate angle automatically and the lift will resume to the memorized angle for the coming use.

Copyright © 2003-2024 Wellkits Electronic Co., Ltd. All Rights Reserved Worldwide.
